H – 2

Model of H – 2 is 2-way Wide-Range professional Line Array speaker system which is designed for big objects like concert halls, stadiums and all kinds of folk festivals and best suitable for joint work with subwoofers HS – 15,
HS – 18.

FEATURES

Please note that speaker system H – 2 is passive system and have NO crossover inside and must be used thru Digital loudspeaker processor.

The corps of acoustic system H – 2 is made of plywood 16 mm, have waterproof practical external sand texture coating. The front side is protected with solid steel grill and covered with high-quality acoustic sponge for optimal speaker protection.

This Line Array have integrated hardware of hanging system which allows you to install your needed direction angle from 0° to 14,5° with every possible step correction on 0,25°.

This model is equipped with dynamic heads, with exceptionally low distortion, which reproduces linear signal, in a wide dynamic range at high power.

Precise reproduction of frequencies with perfect direction adjustment of speaker system gives you complete capabilities to perform all kinds of work in any areas.

In most cases these Line Array systems are used in such areas as: theaters, nightclubs, sport arenas, concert stages, as well as all types of live work of large events with ability of sound reproduction in SET of 8 pieces from 2000 up to 3000 people.

SPECIFICATIONS

 Frequency Range 50 – 20000 Hz
 Power Handling (AEC) 700 W
 PEAK Power 1400W
 Sensitivity (1W/1m) 97 dB
 Maximum SPL 132 dB
 Nominal Impedance 16 Ohm
 Horizontal Coverage Angle 100°
 Vertical Coverage Angle 15°

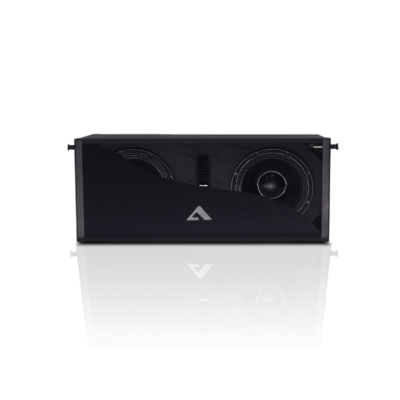

 LF Driver 2 x 10″ woofer / 3″ voice coil
 HF Driver 2 x 1″ driver / 1,75″ voice coil
 Cabinet Plywood / 16 mm
 Coating Black Colour/ sand texture coating
 Flying Hardware provided
 Handles 2 sides

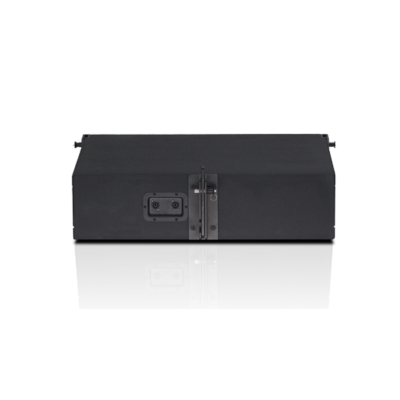

 Connection 2 x Neutrik SpeakON – NL4MP
 Size (H x W x D) 348 x 810 x 495 mm
 Weight 39  kg









SCHEME
