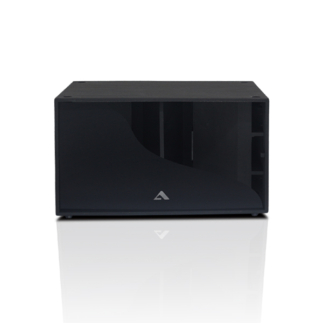

HS – 18

Model of speaker system HS – 18 is professional massive powerful subwoofer and best suitable for joint work with Line Array systems H – 2, H – 3 which is designed for big objects like concert halls, stadiums and all kinds of folk festivals.

FEATURES

Please note that speaker system HS – 18 is passive system which have NO crossover inside and must be used thru Digital loudspeaker processor.

The corps of acoustic system HS – 18 is made of plywood 18 mm, have waterproof practical external sand texture coating. The front side is protected with solid steel grill and covered with high-quality acoustic sponge for optimal speaker protection.

Acoustic system HS – 18 is equipped with powerful dynamic heads, with exceptionally low distortion, which provide incredibly deep bass and perception of equal pressure around the work area of the subwoofer. Precise reproduction of low frequencies with a clear powerful blow, gives you complete capabilities to perform of all kinds of work in any areas.

In most cases this subwoofer is used in such areas as: theaters, nightclubs, sport arenas, concert stages, as well as all types of large events.

SPECIFICATIONS

 Frequency Range 30 – 2000 Hz
 Power Handling (AEC) 1600 W
 PEAK Power 3200 W
 Sensitivity (1W/1m) 102 dB
 Maximum SPL 137 dB
 Nominal Impedance 4 Ohm
 LF Driver 2 x 18″ woofer / 5″ voice coil
 Cabinet Plywood / 18 mm
 Coating Black colour/ Sand texture coating
Handles 6 on the sides
 Connection 2 x Neutrik SpeakON – NL4MP
 Size (H x W x D) 625 x 1182 x 1074 mm
 Weight 130 kg





















SCHEME
