T215 – P1400

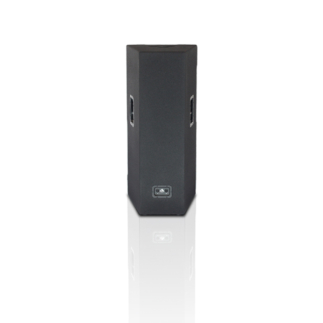

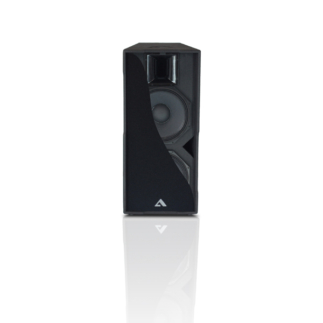

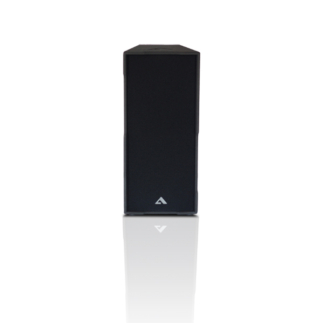

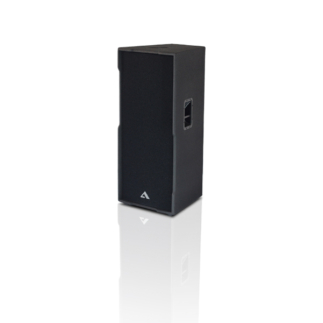

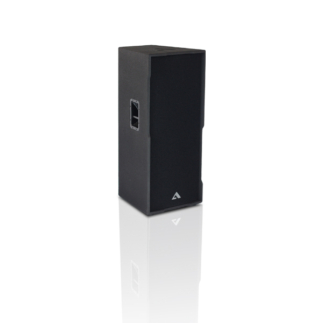

Model of T215 – P1400 is 2-way Wide-Range speaker system which is designed for medium and big objects also for open areas.

To increase more power of this model, will be best suitable for joint work with subwoofers S18 – P800, S218 – P1600.

FEATURES

The corps of acoustic system T215 – P1400 is made of plywood 18 mm, have waterproof practical external sand texture coating. The front side is protected with solid steel grill and covered with high-quality acoustic sponge for optimal speaker protection.

This model is equipped with dynamic heads, with exceptionally low distortion, which reproduces linear signal, in a wide dynamic range at high power.

In most cases this model is used for installation in such areas as: restaurants, theaters, nightclubs, sport complexes, for private parties, as well as for open areas live concerts, of big bands with ability of sound reproduction of one pair from 200 up to 400 people.

SPECIFICATIONS

 Frequency Range 45 – 20000 Hz
 Power Handling (AEC) 1400 W
 PEAK Power 2800W
 Sensitivity (1W/1m) 97 dB
 Maximum SPL 132 dB
 Nominal Impedance 4 Ohm
 Horizontal Coverage Angle 90°
 Vertical Coverage Angle 60°
 LF Driver 2 x 15″ woofer / 4″ voice coil
 HF Driver 1″ driver / 1.75″ voice coil
 Cabinet Plywood / 18 mm
 Coating Black colour / sand texture coating
 Handles 2 on the sides
 Connection 2 x Neutrik SpeakON – NL4MP
 Size (H x W x D) 1140 x 517 x 517 mm
 Weight 66,5 kg



SCHEME
