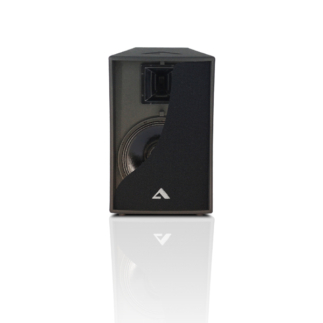

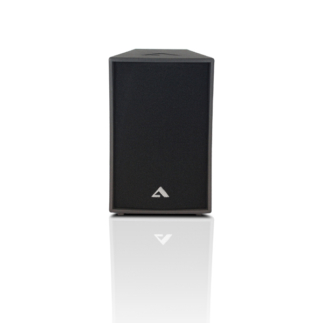

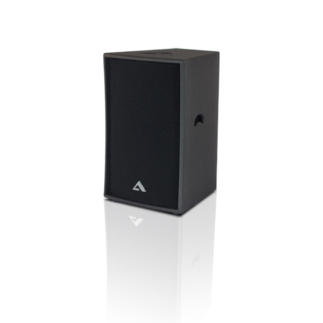

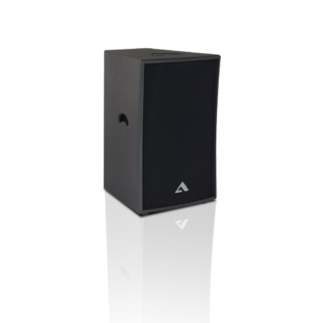

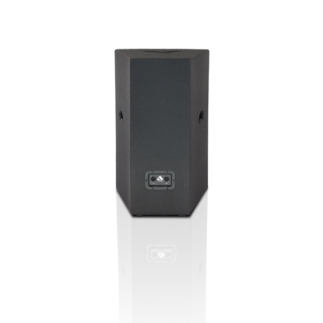

T15 – P500
Model of T15 – P500 is 2-way Wide-Range speaker system which is designed to play vocal-instrumental music. To increase more power of this model, will be best suitable for joint work with subwoofers S12 – P600, S15 – P600.
The corps of acoustic system T15 – P500 is made of plywood 18 mm, have waterproof practical external sand texture coating. The front side is protected with solid steel grill and covered with high-quality acoustic sponge for optimal speaker protection.
At the bottom of the speaker system there is mounting top hat that gives you the ability to install your acoustic system on the speaker stand or on the wall mount in a suitable position for the desired direction of sound frequencies and musical clearance of your events!
This model is equipped with dynamic heads, with exceptionally low distortion, which reproduces linear signal in a wide dynamic range at high power.
In most cases this model is used for installation in such areas as: restaurants, karaoke bars, lounge cafes and recording studios, as well as stage monitors for live musicians with ability of sound reproduction of one pair up to 300 people.
|Frequency Range||40 – 18000 Hz|
|Power Handling (AEC)||500 W|
|PEAK Power||1000 W|
|Sensitivity (1W/1m)||98 dB|
|Maximum SPL||128 dB|
|Nominal Impedance||8 Ohm|
|Horizontal Coverage Angle||90°|
|Vertical Coverage Angle||60°|
|LF Driver||15″ woofer / 3″ voice coil|
|HF Driver||1″ driver / 1.75″ voice coil|
|Cabinet||Plywood / 18 mm|
|Coating||Black colour / sand texture coating|
|Flying Hardware||Mounting top hat|
|Handles||2 on the sides|
|Connection||2 x Neutrik SpeakON – NL4MP|
|Size (H x W x D)||735 x 478 x 490 mm|
